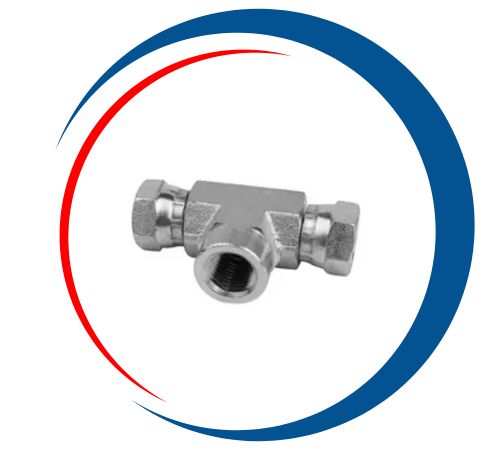

Hydraulic Swivel Branch Tee

Home > Hydraulic Swivel Branch Tee

Noah Tubefittings, located in Kinshasa, Congo, stands out as a top manufacturer and supplier of high-quality Hydraulic Swivel Branch Tees, designed to deliver exceptional performance in tough hydraulic and pneumatic systems. These fittings are crafted to provide flexible connections and smooth directional flow between pipes or tubes, all while reducing stress and vibration within the system. With a commitment to precision engineering and the use of high-grade materials, Noah Tubefittings guarantees leak-proof performance, impressive strength, and resistance to corrosion. Their Hydraulic Swivel Branch Tees are relied upon across various industries, including construction, marine, oil and gas, and heavy machinery, thanks to their reliability, durability, and straightforward installation.

Swivel Adjustable Branch Tee Supplier in Kinshasa, Swivel Adjustable Run Tee Manufacturer in Kananga, Hydraulic Swivel Branch Tee Exporter in Mbuji-Mayi, CS Swivel Adjustable Branch Tee Manufacturer in Kinshasa, Swivel Adjustable Run Tee Stockist in Kinshasa, Hydraulic Swivel Branch Tee Manufacturer in Lubumbashi, Congo, Swivel Adjustable Branch Tee Stockist in Kisangani

Typically made from materials like stainless steel, carbon steel, or brass, these fittings boast excellent mechanical strength and corrosion resistance. They have a tensile strength that ranges from 500–900 MPa and a yield strength between 250–700 MPa, depending on the material. Designed to handle high pressure and resist fatigue, they perform efficiently even under continuous movement and varying loads. The swivel design offers full rotational flexibility, preventing hose twisting and extending service life, particularly in high-pressure hydraulic applications.

Hydraulic Swivel Branch Tee Specifications

STANDARD	DIN 2353/ ISO 8434-1
MATERIAL	MS, CS, SS 304 ,SS 304L , SS 316 ,SS 316L, SS 316TI ( 1.4571) , BRASS , COPPER , DUPLEX , SUPER DUPLEX , INCONEL , MONEL , HASTELLOY , 904L , 6MO, TITANIUM , ALUMNIUM, ALLOY 20
MATERIAL
SERIES	LL- LOW PRESSURE , L- MEDIUM PRESSURE, S- HIGH PRESSURE
WORKING PRESSURE	(LOW) LL SERIES – 100 BAR
	(MEDIUM)L SERIES – 100 BAR TO 500 BAR
	(HEAVY)S SERIES – 200 BAR TO 800 BAR
SIZE RANGE	LL SERIES – 4LL TO 12LL
	L SERIES – 6L TO 42L
	S SERIES – 6S TO 38S
BODY TYPE	FORGED, BAR STOCK
ACCESSORIES	O-RING, DOWTY SEAL , COPPER WASHER , ED SEAL, CUTTING RING , NUT
O-RING & SEALS	NBR ( -35C TO 100 C ) VITON (-25C TO 200 C) , PTFE – (-60C TO 240)
SURFACE	CARBON STEEL -TRIVALENT ZINC PLATED , YELLOW PLATTING , BLACK PHOSPHATED,
SURFACE	STAINLESS STEEL – EXPORT BRIGHT FINISH, SHORT BLASTED FINISH, ELECTROPLATED FINISH
TEMPERATURE	STEEL – (-40* C TO 120C) ,STAINLESS STEEL – (-60C TO 400C) BRASS – (-60C TO 175*C)

Top Hydraulic Swivel Branch Tee Manufacturing Company in Kinshasa

At Noah Tube Fittings, we are the largest supplier, manufacturer, and exporter of Hydraulic Swivel Branch Tee in Kinshasa, Congo. Our advanced manufacturing facilities, strategically positioned in the Congo, enable us to deliver high-quality solutions to meet your specific requirements. With a robust inventory of over 16,000 tons of top-grade materials, we are well-equipped to fulfil your needs promptly. Our commitment to excellence and efficiency ensures we always have the available stock to support your demands.

Types of Hydraulic Swivel Branch Tee

Technical Data Of Hydraulic Swivel Branch Tee

roduct Name	Type	End 1 & 3 Thread Size	End 1 & 3 Thread Type	End 2 Thread Size	End 2 Thead Type	Body Material
Female NPT Swivel, x Male NPT x Female NPT Swivel, Female Pipe S	Swivel Branch Tee	1/8 (FM)	NPT	1/8 (M)	NPT	Steel
Female NPT Swivel, x Male NPT x Female NPT Swivel, Female Pipe S	Swivel Branch Tee	1/4 (FM)	NPT	1/4 (M)	NPT	Steel
Female NPT Swivel, x Male NPT x Female NPT Swivel, Female Pipe S	Swivel Branch Tee	3/8 (FM)	NPT	3/8 (M)	NPT	Steel
Female NPT Swivel, x Male NPT x Female NPT Swivel, Female Pipe S	Swivel Branch Tee	3/8 (FM)	NPT	1/2 (M)	NPT	Steel
Female NPT Swivel, x Male NPT x Female NPT Swivel, Female Pipe S	Swivel Branch Tee	1/2 (FM)	NPT	1/2 (M)	NPT	Steel
Female NPT Swivel, x Male NPT x Female NPT Swivel, Female Pipe S	Swivel Branch Tee	1 (FM)	NPT	1 (M)	NPT	Steel

SS Swivel Adjustable Branch Tee Supplier in Lubumbashi, Congo, CS Swivel Adjustable Run Tee Exporter in Kananga, SS Swivel Adjustable Branch Tee Manufacturer in Mbuji-Mayi, CS Swivel Adjustable Branch Tee Exporter in Lubumbashi, Swivel Adjustable Branch Tee Exporter in Kisangani,Swivel Adjustable Run Tee Supplier in Mbuji-Mayi, Congo

We offer These Products as per DIN, ISO, JIS or ANSI Standard.

Largest Manufacturer and Supplier of Hydraulic Swivel Branch Tee in Kinshasa, Congo

Noah Tube Fittings is a leading supplier and stockist of premium Hydraulic Swivel Branch Tee in Kinshasa, Congo. Our products are widely utilized across various industries, and we are committed to delivering exceptional service and ensuring high customer satisfaction. Our distinctive finishing techniques set us apart in the metal industry. We are dedicated to consistently providing top-quality products while effectively addressing the needs of our customers.

Hydraulic Swivel Branch Tee Uses

Hydraulic Swivel Branch Tees find their place in hydraulic systems, construction equipment, agricultural machinery, and industrial automation. They are perfect for connecting a branch line to a main hydraulic circuit while allowing for flexibility in system layout. Their swivel feature makes assembly and maintenance a breeze, reducing mechanical strain on connected components. These fittings are ideal for high-pressure fluid transmission, ensuring efficient flow control and leak-free operation. With their robust design and dependable performance, Hydraulic Swivel Branch Tees are the go-to choice for critical fluid handling and motion control systems.
