Noah Tube Fittings is a premier manufacturer and distributor renowned for its exceptional quality and innovative solutions in the tube fitting industry. Specializing in a wide range of products, we proudly offer our Male Branch Tee, designed to ensure secure and leak-proof connections in various applications. Crafted from high-grade materials, our fittings provide durability and reliability, making them ideal for demanding environments. With a commitment to customer satisfaction and industry excellence, Noah Tube Fittings is your trusted partner for all tube fitting needs, delivering superior products that meet the highest standards of performance and safety.

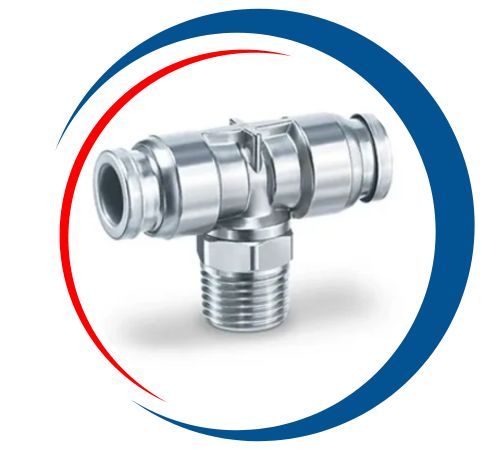

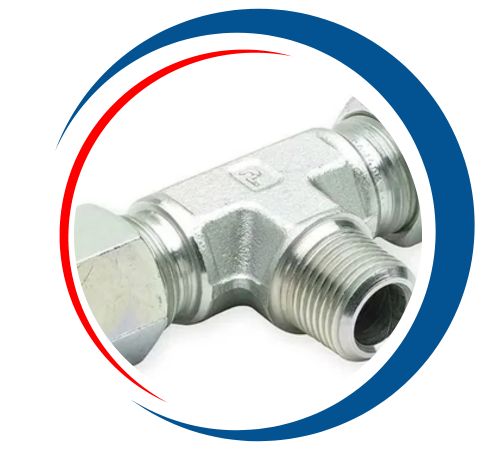

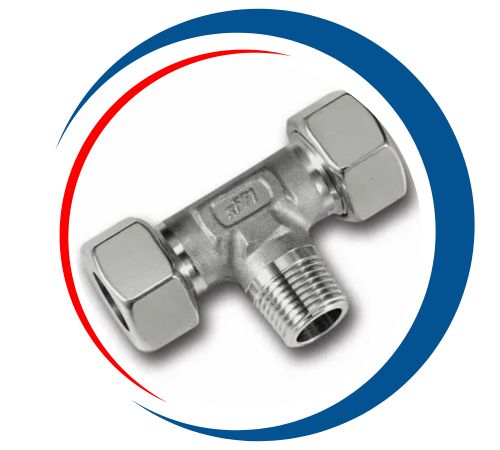

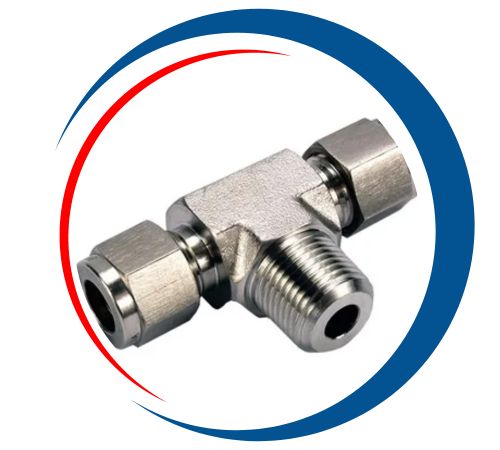

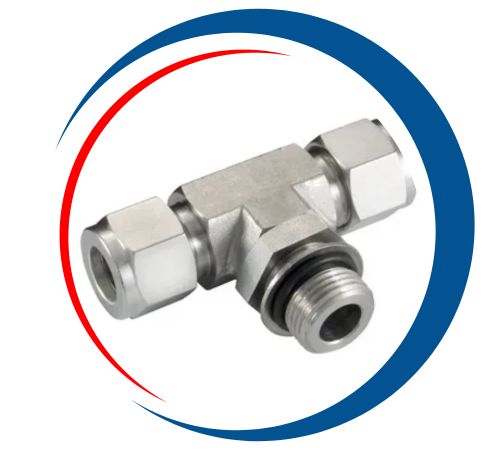

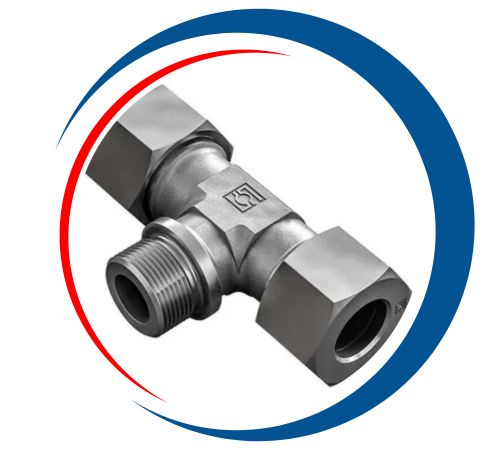

The Male Branch Tee is typically composed of high-quality stainless steel or brass, ensuring excellent corrosion resistance and durability. Its mechanical properties include high tensile strength, good ductility, and resistance to deformation under pressure. This fitting provides a secure connection for branching pipes at a 90-degree angle, enhancing fluid flow efficiency. Advantages of the Male Branch Tee include ease of installation, leak-proof performance, and compatibility with various pipe sizes. Its robust design makes it suitable for demanding applications in industries such as oil and gas, chemical processing, and water distribution.
| Mcneil part no. | Equivalent Part no. Type 1 | Equivalent part no Type 2 | NPT FEMALE PIPE SIZE P | LX | ODT-ØT(INCHES) | Ø E | BODY HEX F | C | NUT HEX W | D | L1 |
| 2-MBTD-2N | -200 – 3 – 2TTM | 2MBT2N | 1/8 | 0.70 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.86 |
| 2-MBTD-4N | -200 – 3 – 4TTM | 2MBT4N | 1/4 | 0.92 | 1/8 | 0.09 | 9/16 | 0.60 | 7/16 | 0.50 | 1.94 |
| 3-MBTD-2N | -300 – 3 – 2TTM | 3MBT2N | 1/8 | 0.70 | 3/16 | 0.12 | 9/16 | 0.63 | 7/16 | 0.54 | 1.92 |
| 4-MBTD-2N | -400 – 3 – 2TTM | 4MBT2N | 1/8 | 0.74 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 4-MBTD-4N | -400 – 3 – 4TTM | 4MBT4N | 1/4 | 0.92 | 1/4 | 0.19 | 9/16 | 0.70 | 9/16 | 0.60 | 2.12 |
| 5-MBTD-2N | -500 – 3 – 2TTM | 5MBT2N | 1/8 | 0.82 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 5-MBTD-4N | -500 – 3 – 4TTM | 5MBT4N | 1/4 | 1.01 | 5/16 | 0.19 | 9/16 | 0.73 | 5/8 | 0.64 | 2.34 |
| 6-MBTD-4N | -600 – 3 – 4TTM | 6MBT4N | 1/4 | 1.00 | 3/8 | 0.28 | 13/16 | 0.86 | 11/16 | 0.66 | 2.40 |
| 6-MBTD-6N | -600 – 3 – 6TTM | 6MBT6N | 3/8 | 1.11 | 3/8 | 0.28 | 13/16 | 0.76 | 11/16 | 0.66 | 2.62 |
| 8-MBTD-6N | -810 – 3 – 8TTM | 8MBT6N | 3/8 | 1.11 | 1/2 | 0.38 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 8-MBTD-8N | -810 – 3 – 8TTM | 8MBT8N | 1/2 | 1.30 | 1/2 | 0.41 | 13/16 | 0.86 | 7/8 | 0.90 | 2.84 |
| 10-MBTD-8N | -1010 – 3 – 8TTM | 10MBT8N | 1/2 | 1.41 | 5/8 | 0.47 | 1 | 0.86 | 1 | 0.96 | 3.06 |
| 12-MBTD-12N | -1210 – 3 – 12TTM | 12MBT12N | 3/4 | 1.45 | 3/4 | 0.62 | 1-1/16 | 0.86 | 1-1/8 | 0.96 | 3.14 |
| 14-MBTD-12N | -1410 – 3 – 12TTM | 14MBT12N | 3/4 | 1.50 | 7/8 | 0.62 | 1-3/8 | 0.86 | 1-1/4- | 1.02 | 3.52 |
| 16-MBTD-12N | -1610 – 3 -12TTM | 16MBT12N | 3/4 | 1.66 | 1 | 0.62 | 1-3/8 | 1.04 | 1-1/2 | 1.23 | 3.88 |
| 16-MBTD-16N | -1610 – 3 -16TTM | 16MBT16N | 1 | 1.84 | 1 | 0.88 | 1-3/8 | 1.04- | 1-1/2 | 1.23 | 3.88 |
At Noah Tube Fittings, we are the leading supplier, manufacturer, and exporter of Male Branch Tee in Kinshasa, Congo. Our state-of-the-art manufacturing facilities, strategically located in the Congo, empower us to provide high-quality solutions tailored to your specific requirements. With an extensive inventory of various premium materials, we are well-equipped to meet your needs efficiently. Our dedication to excellence and operational efficiency ensures we consistently maintain available stock, making us your trusted partner for reliable Union Cross fittings in various applications.
Noah Tube Fittings is a leading supplier and Stockist of premium Male Branch Tee in Kinshasa, Congo. Our products are widely utilized across various industries, recognized for their strength, durability, and reliable performance in connecting multiple pipe sections. We are committed to delivering exceptional service and ensuring high levels of customer satisfaction. Our advanced manufacturing techniques set us apart in the fittings industry, enabling us to consistently provide top-quality Union Cross fittings while effectively addressing the unique requirements of our customers.
Contact us to get a quick quote for your requirement.
The Male Branch Tee is widely used in various industries for connecting multiple pipes at a 90-degree angle. It is essential in plumbing systems for efficient water distribution and in HVAC systems for air conditioning and heating applications. Additionally, it is utilized in oil and gas pipelines to facilitate branching connections without compromising flow. The fitting also finds applications in chemical processing and manufacturing, where it ensures leak-proof connections in high-pressure environments. Its versatility makes it an indispensable component in both residential and industrial piping systems.
Please feel free to contact us if you need any further information or for enquiry.
